Description

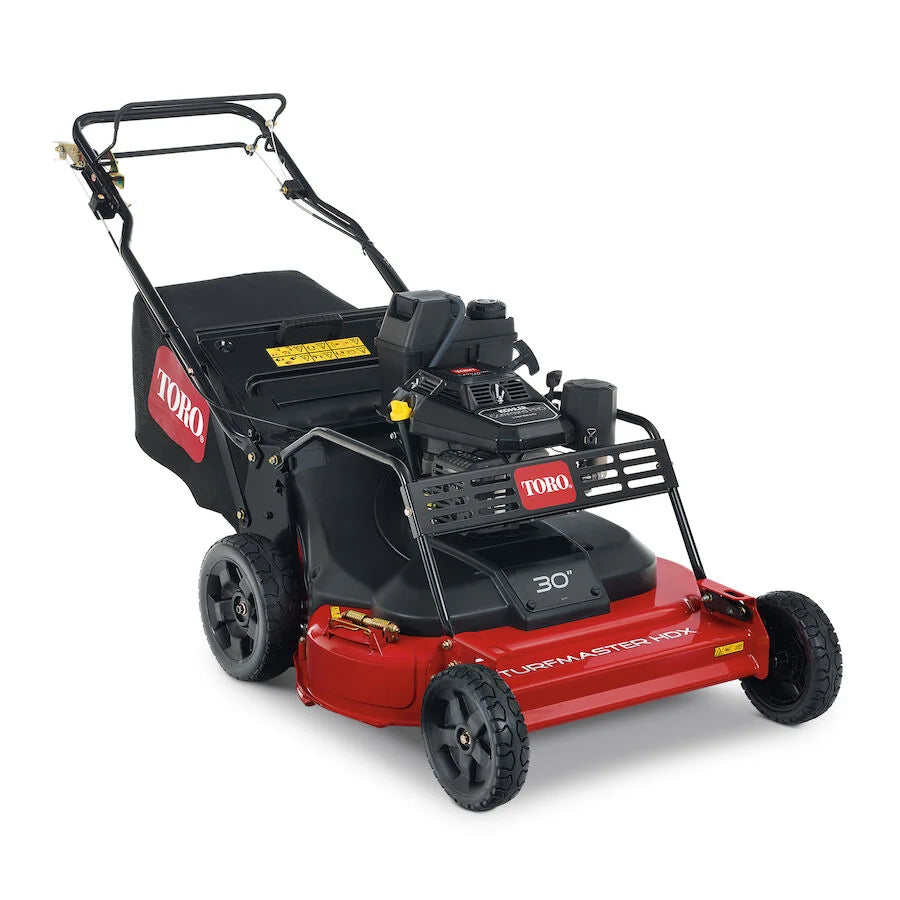

The Toro 30" TurfMaster HDX model 22235 is a reliable and efficient self-propelled lawn mower designed for commercial use. Equipped with a Kohler CV224 Command Pro 224 cc engine and 30-inch mowing deck, it can cover a large area quickly and efficiently. Its heavy-duty transmission and cast aluminum frame make it durable and long-lasting, while its ergonomic handle and adjustable speed make it comfortable to operate. The TurfMaster HDX model 22235 is a top-of-the-line lawn mower for commercial landscapers and large property owners.
Features
Impact Protection
Steel bullnose front bumper, brush guard and engine guard protect components from damage.
Heavy-Duty Components
Every component is designed for the jobs you need to perform, including the durable cast-aluminum frame, the heavy duty steel deck, and the bull-nose front bumper.
2-Point Height of Cut
Heavy-duty 2-point height of cut (HOC) system makes it easy to adjust deck height. No need to walk around the mower to adjust four different levers.
Mulching System
Mulching system minces grass clippings for a "just bagged" appearance without the hassle of clipping collection and disposal.
Large 1-Gallon Gas Tank
A larger gas tank means longer mowing time between refueling.
Two-Bail Control System
Provides excellent speed control and is easy to operate.
Blade Brake Clutch (BBC)
Allows the operator to disengage the blades without shutting down the engine. Saves time restarting when you have to step away momentarily to move obstacles or empty the bag.
Highly Productive 30" Deck
3-in-1 deck design provides mulching, bagging or side discharge and helps you finish the job faster.
1.1 Maximum Acres per Hour
Maximum acres per hour based on 90% efficiency (MPH x width of cut). Actual productivity dependent upon conditions.
Commercial-Grade Wheels
Rubber tires with co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs.
Specifications
| Bagger Capacity | 2.5 bushels |
|---|---|
| Blade Design | 0.135 in. / 0.343 cm Thick Steel |
| Blade Engagement | Blade Brake Clutch (BBC) |
| Blade Tip Speed | 18,000 ft/min / 5,486 m/min |
| CARB Compliant | CARB Compliant |
| Cutting Width | 30 in. / 76 cm |
| Deck Material | 13 Gauge Steel Deck / Cast Aluminum Frame |
| Engine | Kohler CV224 Command Pro 224 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 224 cc |
| Forward Mowing Speed | Up to 4.0 mph / 6.4 kph |
| Fuel Capacity | 1 gal. / 3.8 L / 4 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments |
| Mulch, Bag, Side Discharge | Bag standard, Mulch standard, Side discharge standard |
| Number of Blades | 2 |
| Product Type | Heavy Duty |
| Product Use | Commercial |
| Spindle Housing | Die Cast Spindle, 17 mm Cold Formed Spindle Shafts |
| Start Type | Recoil |
| Tires | Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Wheels Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels |
| Transmission | Heavy Duty Variable Speed Rear Wheel Drive |
