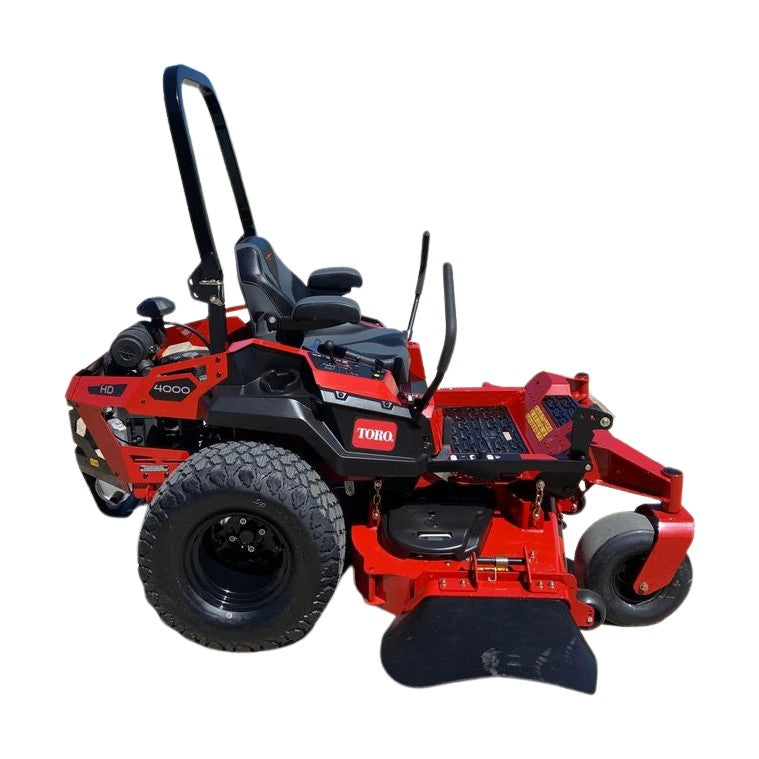

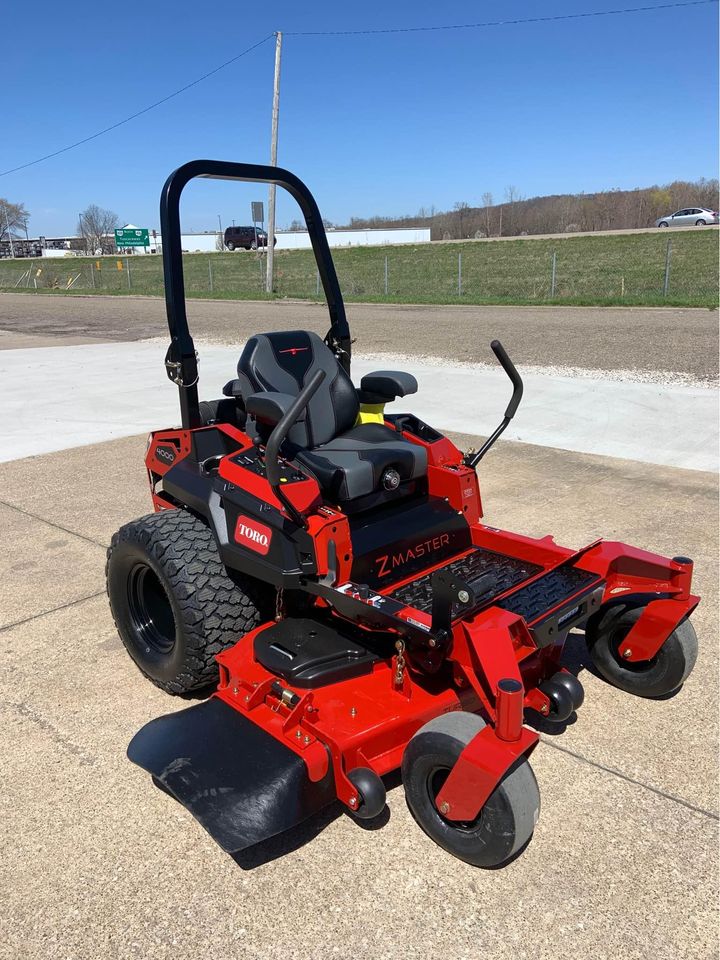

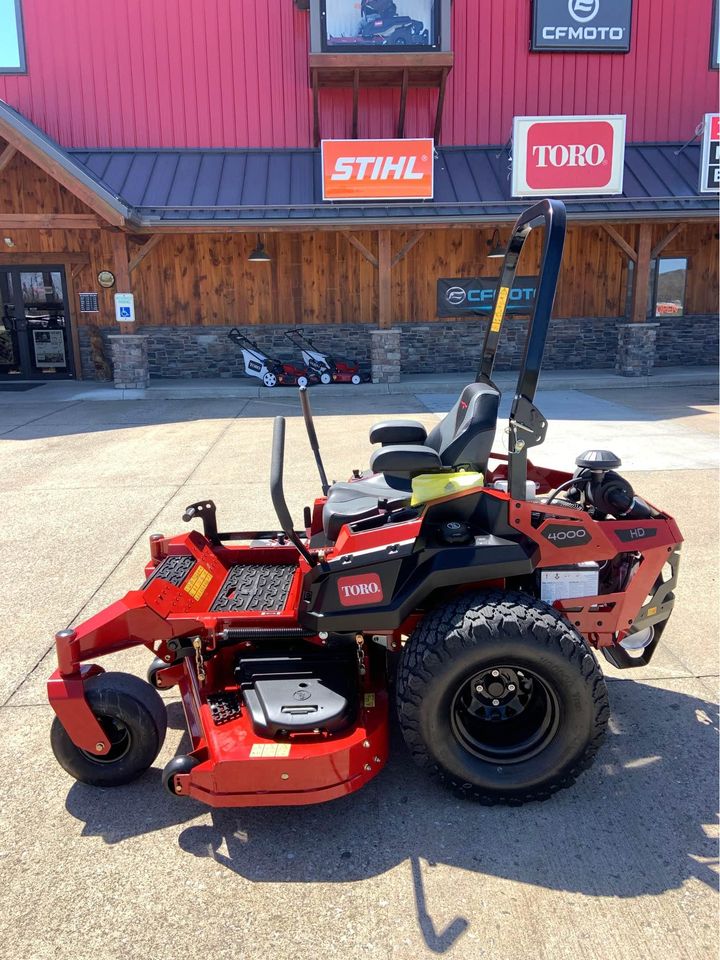

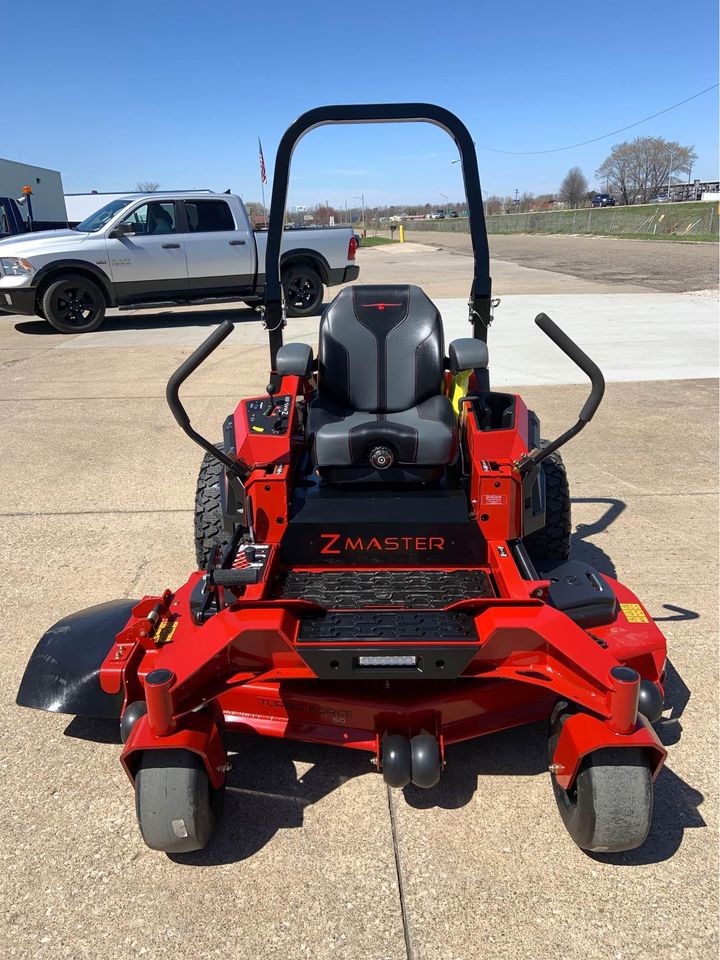

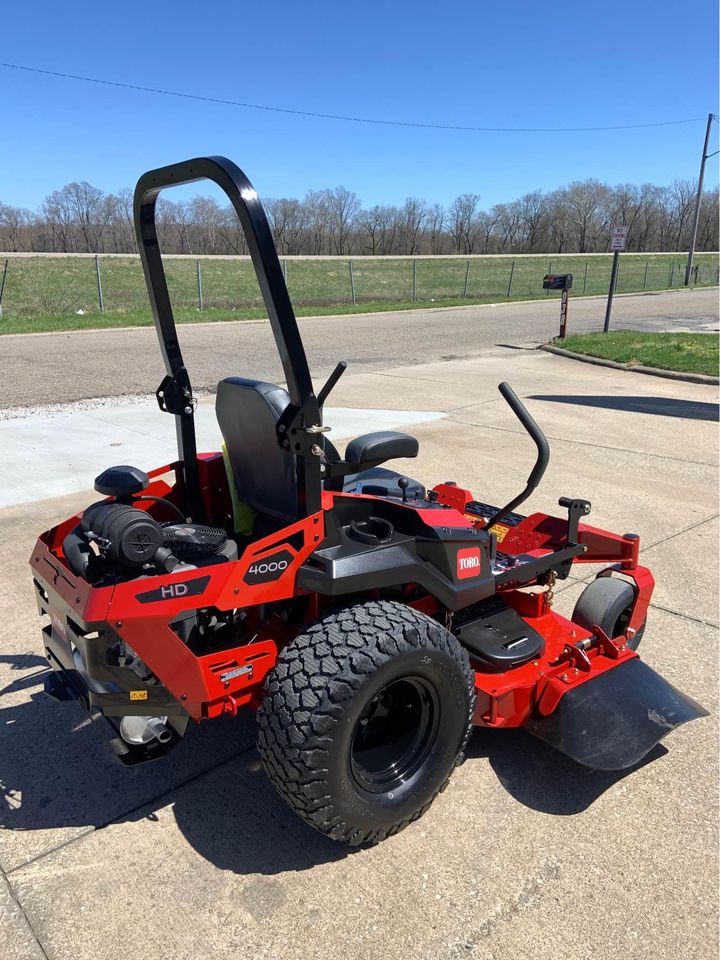

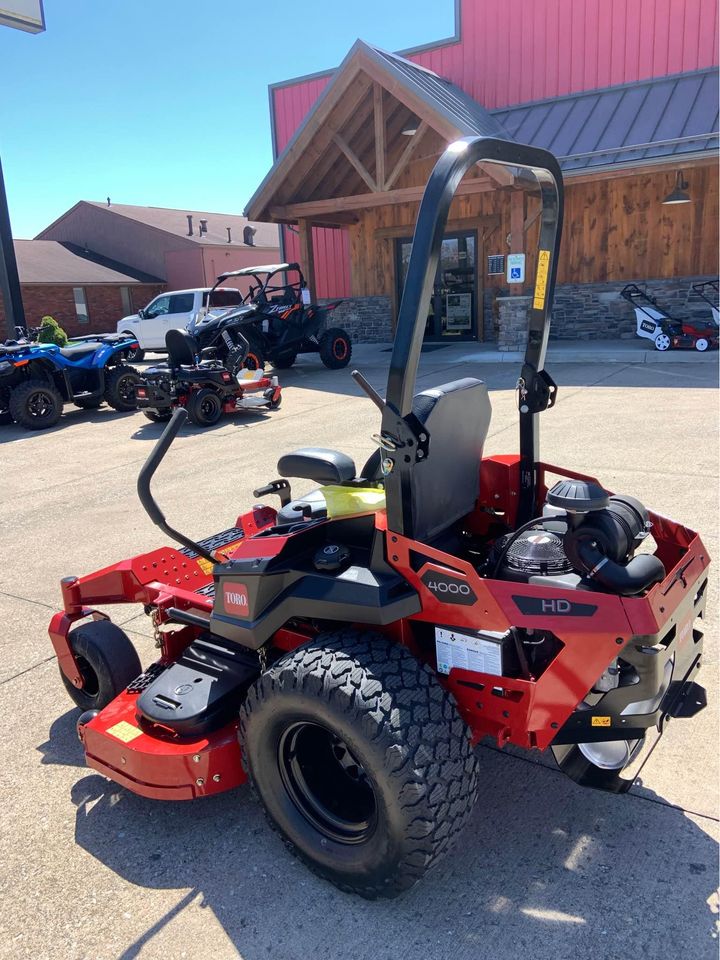

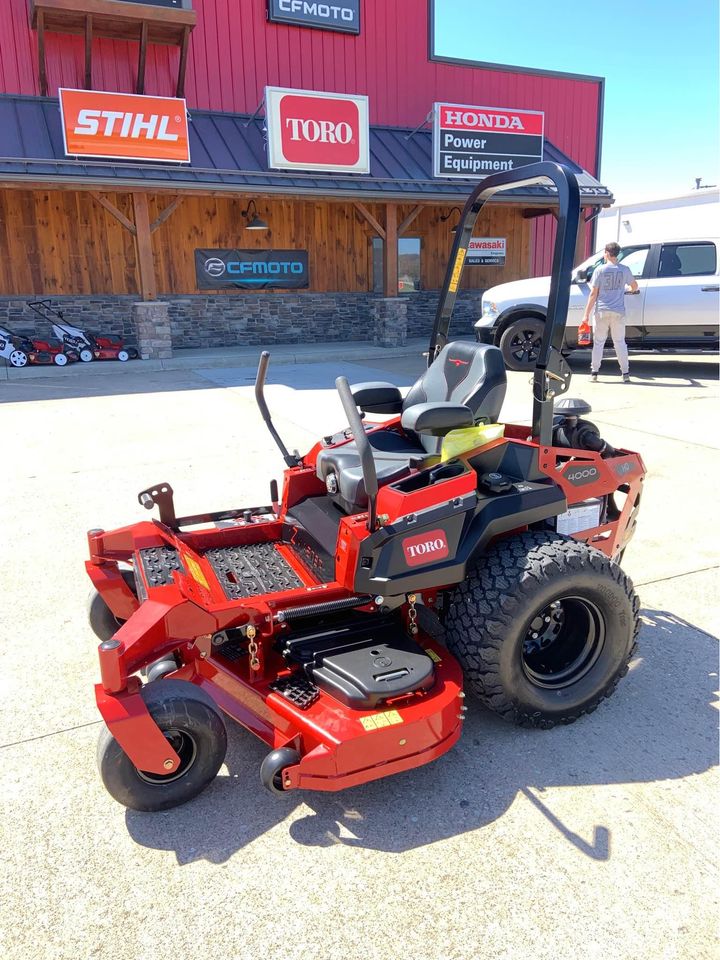

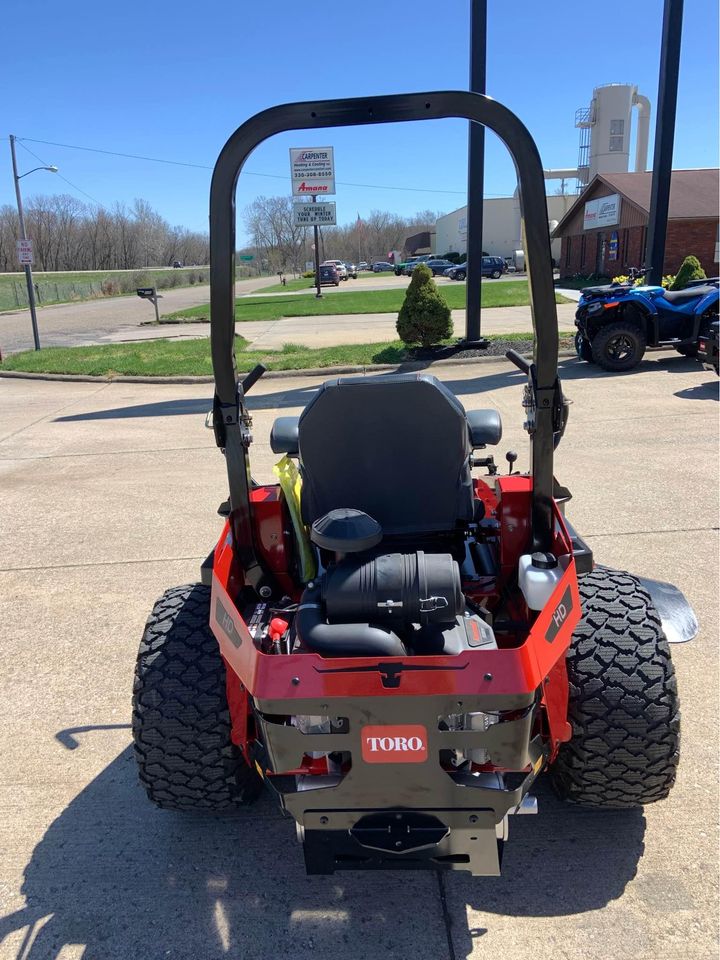

The 60'' Toro 74054 Z Master is a top-of-the-line commercial-grade zero-turn mower that is designed to provide exceptional performance and durability. Powered by a 25.5hp Kawasaki engine, this machine delivers powerful and reliable performance, enabling it to tackle even the most demanding mowing tasks with ease. Equipped with a 60'' cutting deck, this mower can cover large areas quickly and efficiently, while the high-back seat with adjustable armrests and suspension seat ensures a comfortable ride. With its durable construction and advanced features such as the adjustable cutting height and easy-to-use control panel, the 60'' Toro Z Master is the ultimate choice for professional landscapers and homeowners who want a high-performance mower that delivers exceptional results every time.
| Air Filter |
Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| Blades |
0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions |
91 in. x 70 in. x 52.5 in. / 231.1 cm x 316.2 cm x 133.4 cm |
| CARB Compliant |
Not CARB Compliant |
| Caster Tires |
15 in. x 6.5 in. - 6 in. (38 x 16.5 - 15.2 cm) Pneumatic |
| Clutch |
Electromagnetic |
| Cutting Width |
60 in. / 152 cm |
| Deck Design |
60" (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE® |
| Deck Material |
7 Gauge High-Strength Steel |
| Discharge Chute |
Rubber |
| Drive Tires |
Voodoo Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm) |
| Engine |
25.5 hp* Kawasaki FX801V (852 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Engine Brand |
Kawasaki |
| Engine Displacement (cc) |
852 cc |
| Engine Horsepower |
25.5 hp |
| Foot Operated Height of Cut |
Standard |
| Forward Ground/Transport Speed |
Up to 12.0 mph / 19.3 kph |
| Fuel Capacity |
10 gal. / 37.8 L / 40 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.5 in. / 3.8 - 14.0 cm |
| Hour Meter |
Standard Hour Meter |
| Lighting |
LED Headlights |
| Product Features |
Deluxe Seat, Electric Start, Foot Operated Height of Cut, Gas Powered, Hour Meter |
| Product Type |
Zero Turn Mower |
| Roll-Over Protection (ROPS) |
Folding; Standard |
| Seat |
Deluxe Suspension Seat |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
9 in / 2.9 cm Diameter Aluminum |
| Start Type |
Electric |
| Steering Controls |
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
| Transmission |
ZT-4400 Integrated Pumps and Wheel Motors |
